Ametek

AMETEK Solidstate Controls (Solidstate) was established in 1962 with the purpose of providing continuity of power to businesses. This was accomplished with UPS (uninterruptible power supplies), industrial batteries,power conditioners, and much more. While are products have advanced with the movement of time, our focus has not. We now serve more than 35,000 systems around the world.

Products

  • Solid –state controls:
  • UPS systems.
  • Inverters.
  • Battery chargers.
  • Voltage regulators.
  • Bypass switches.
  • Batteries.
  • Cathodic protection rectifier.
  • Battery monitors.
  • Fusible boards.
http://www.solidstatecontrolsinc.com

Product Categories

slide 1

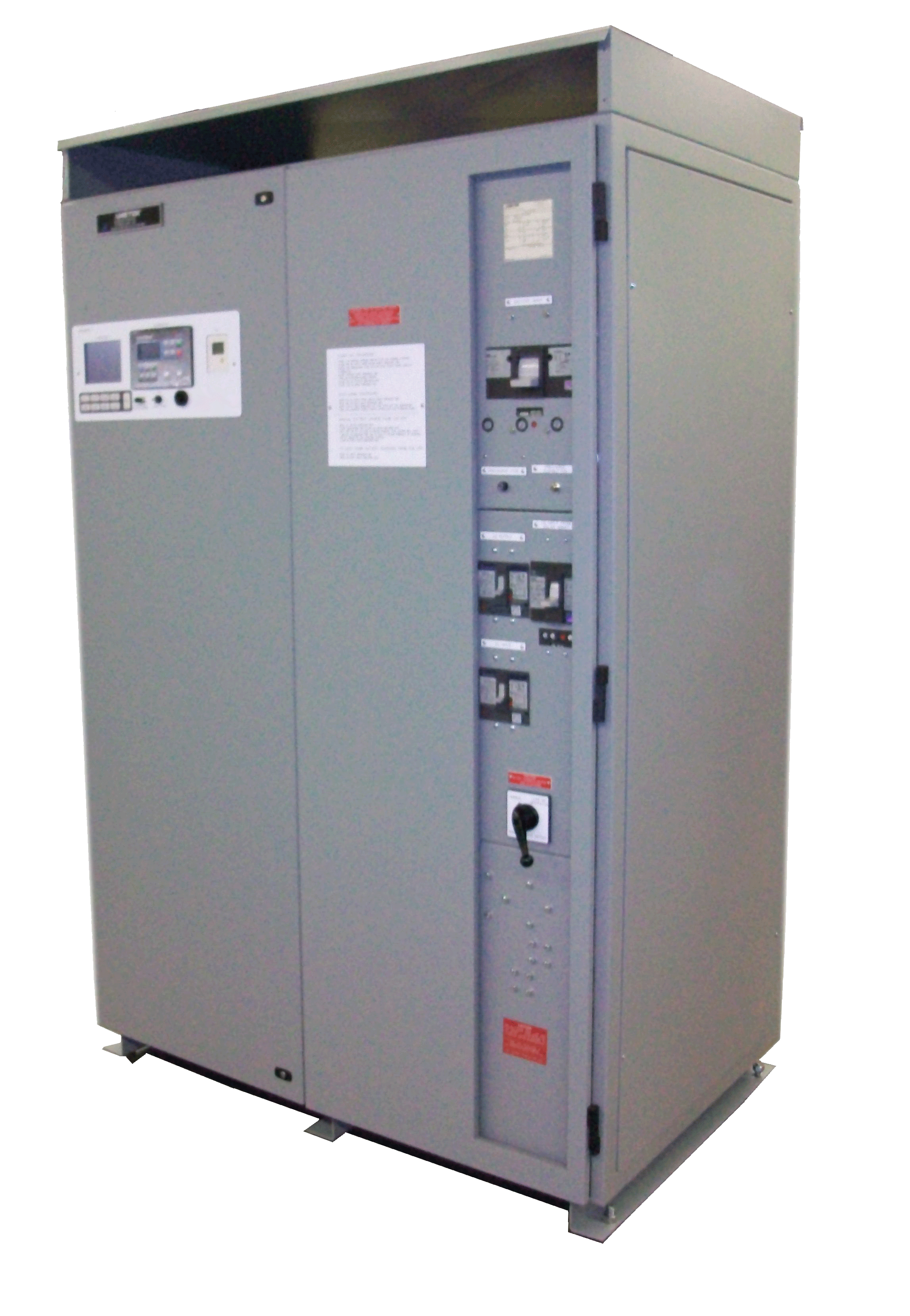

SE(Plus) Ferroresonant Industrial UPS System

High reliability - exceeds 140,000 hours (16 years) MTBF.
- Industrial grade - built to operate in extreme environments, (VPI) vacuum impregnated magnetics with 200ºC epoxy insulation.
- Low audible noise.
- High efficiency transistor bridge.
- Long life LED indicators, front panel accessibility.
- Harmonic filtering for distributed control systems.
- Unique crest factor circuitry provides full capacity for non-linear loads.
- Optional remote status panel.
- All components are front accessible- no side or back clearance required.
- Integral system event recording for diagnostics (logs last 100 events).
- Lighted mimic panel display.
- Microprocessor based alarms
- RS232. communications interface accessible through door front.
- Optional Rectifier blocking diode to use the SEPlus with existing station battery and battery charger.
